An Fengxue's blog : Aluminum Perforated Strips
Hengda manuctures and supplies Perforated Aluminum Strips for production of aluminum corner beads / guards with fiberglass mesh.
Corner Beads made of Aluminum perforated strips / sheets have following features:
1, Excellent corrosion protection;
2, High-quality finish;
3, Flanges are deeply knurled and perforated for excellent joint compound adhesion;
4, Solid protection for drywall corners;
5, Light weight strong metal reinforcement structure.
Aluminium Perforated Strips
Supplied according to following technical requirements
Material: Aluminum Alloy AA 1050, AA 1060
Temper H 24
Sheet Width 34.00 mm
Sheet Thickness 0.23 mm
Internal diameter of coil 280 mm
Outer diameter of coil 800 mm
Detailed data for perforated aluminum:
Perforated Strip Technical Data
Aluminium Perforated Strips / Coils
Supplied according to following technical requirements
Material: Aluminum Alloy AA 1050
Temper H18
Sheet Width 34.00 mm
Sheet Thickness 0.25 mm
Internal diameter of coil 280 mm
Outer diameter of coil 800 mm
Perforation options: Triangle or circular round

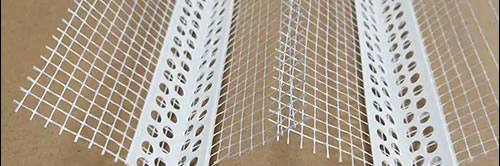

Aluminum Perforated Corner Beads with Fiberglass Mesh
Size: 30x10x10x0.4mm
Thickness range: 0.3-0.7mm
Wing width: 25*25mm
Corner bead length: 2400/2700/3000mm
