H-Type Vertical Axis Wind Turbine (VAWT): A Modern Solution for Decentralized Wind Power
Wind energy has become one of the leading sources of renewable energy globally, with the majority of wind turbines being the traditional horizontal-axis wind turbines (HAWTs) seen on wind farms. However, there's a growing interest in vertical-axis wind turbines (VAWTs), especially for urban, small-scale, and off-grid applications. Among these, the H-type VAWT stands out for its unique design, efficiency at low wind speeds, and potential for distributed power generation.
This article explores the H Vertical Axis Wind Turbine, its working principle, design, advantages, disadvantages, and emerging applications.
What is an H-Type Vertical Axis Wind Turbine?

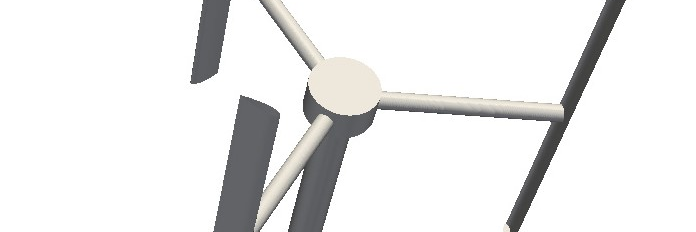

H Vertical Axis Wind Turbine is a type of vertical axis wind turbine that uses straight blades mounted vertically and connected to a central rotating shaft through arms or struts, forming an "H" shape when viewed from the front.
This design is a subtype of the Darrieus wind turbine, which originally used curved blades. The H-type, sometimes called a straight-bladed Darrieus turbine, is a modern variation designed for better mechanical simplicity and structural integrity.
How Does It Work?
The H-type VAWT captures kinetic energy from wind blowing from any horizontal direction. Here's how it operates:
1. Lift-Based Operation
The turbine blades are designed like airplane wings (aerofoils).
As wind flows over the blades, it creates a lift force perpendicular to the wind direction.
This lift force causes the rotor to spin around the vertical axis.
2. Rotation
Unlike drag-based turbines (e.g., Savonius), the H-type VAWT uses lift forces to rotate faster and more efficiently.
It can rotate regardless of wind direction, making it omnidirectional.
3. Power Generation
The rotating shaft is connected to a generator, either at the base (for ground-level systems) or at the top (for tower-mounted systems), which converts mechanical energy into electricity.
Design Features of H-Type VAWT
Advantages of H-Type VAWTs
✅ Omnidirectional Wind Capture
No need to orient the turbine to face the wind.
Ideal for areas with frequent wind direction changes.
✅ Low-Noise Operation
Operates more quietly than large HAWTs, suitable for urban and residential areas.
✅ Low Maintenance
Generator and gear system can be placed at ground level, simplifying maintenance.
✅ Better Performance at Low Wind Speeds
Suitable for low to moderate wind speed regions.
✅ Compact Footprint
Requires less horizontal space, making it ideal for rooftops or urban installations.
✅ Scalability
Can be designed for small-scale applications (e.g., home energy) or larger installations in microgrids.
Disadvantages of H-Type VAWTs
❌ Lower Efficiency Compared to HAWTs
Lower tip speed ratio and aerodynamic efficiency in large-scale applications.
❌ Startup Torque Requirement
May need external power to start in very low wind speeds (unless self-starting mechanisms are added).
❌ Fatigue Stress on Blades
The design can lead to cyclic stresses on blades and arms, requiring strong materials and good engineering.
❌ Limited Commercial Deployment
Less widely used and studied than HAWTs, so less industrial-scale adoption and development.
Applications of H-Type VAWTs
🌆 Urban and Residential Use
Rooftop installations on buildings and houses.
Noise-sensitive environments like schools or offices.
⚡ Off-Grid and Remote Areas
Rural electrification.
Supplementing solar panels in hybrid systems.
🧪 Research and Educational Institutions
Ideal for demonstration and training in renewable energy systems.
🏭 Industrial and Commercial Sites
Can be mounted on large structures or unused vertical surfaces.
Recent Innovations and Trends
✅ Magnetic Bearings
Reduce friction and wear, improving efficiency and lifespan.
✅ Hybrid Systems
Integrated with solar panels for continuous energy generation.
✅ Smart Grid Integration
Used in microgrid systems for distributed generation.
✅ Advanced Blade Materials
Lightweight carbon fiber or composite blades increase durability and efficiency.
Comparison: H-Type VAWT vs. HAWT
Conclusion
The H-type vertical axis wind turbine presents a compelling solution for decentralized, small-scale, and urban wind power generation. With a unique combination of simplicity, omnidirectional wind capture, and quiet operation, it addresses many of the limitations of traditional turbines in specific environments.
While not a replacement for large horizontal-axis turbines in utility-scale projects, the H-type VAWT shines in areas where traditional systems fall short. As technology and materials continue to evolve, and as interest in clean energy and urban sustainability grows, the H-type VAWT may play a key role in the next generation of distributed renewable energy systems.
