Window handles are small yet essential components of your home’s functionality and security. Over time, they can wear out, become stiff, or break altogether. Replacing a faulty handle is usually straightforward if you know how to measure and fit the correct replacement.

This step-by-step guide will walk you through the process of measuring and fitting a replacement window handle, ensuring a perfect fit and smooth operation.

Tools You’ll Need

Before you start, gather the following tools:

· A screwdriver (usually Phillips or flathead)

· A measuring tape or ruler

· Replacement handle (do not purchase until you’ve measured the existing one)

· Pen and paper (for recording measurements)

· WD-40 or light oil (optional, for stiff mechanisms)

Step 1: Identify the Type of Window Handle

Before measuring, it's crucial to identify the type of handle your Window Handle uses. Common styles include:

1. Espagnolette (Espag) Handle

Most common on modern UPVC windows.

Operates a multi-point locking system.

Features a spindle that slots into the window mechanism.

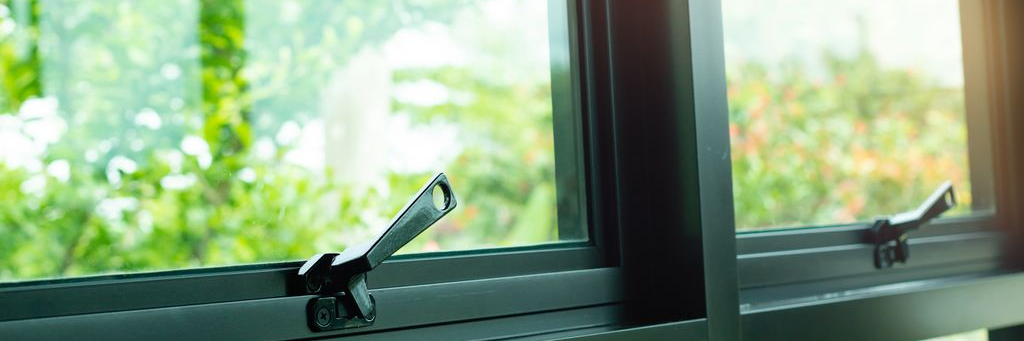

2. Cockspur Handle

Found on older uPVC, timber, or aluminum windows.

Uses a spur or nose that catches onto a wedge.

3. Tilt and Turn Handle

Used on tilt-and-turn windows, often found in European-style setups.

4. Casement Handle

Used on outward-opening windows.

Often fitted to wood or aluminum frames.

Knowing the type helps you select the correct replacement.

Step 2: Remove the Existing Handle

To take accurate measurements, first remove the old handle:

Open the window.

Locate the screw covers (usually small plastic caps) on the handle base.

Pop off the covers using a flathead screwdriver or your fingernail.

Unscrew the handle and carefully pull it away from the window frame.

Note the orientation of the handle—left-handed or right-handed.

Tip: Take a photo before removing the handle in case you need to refer back during installation.

Step 3: Measure Key Dimensions

For Espag Handles:

1. Spindle Length

This is the most critical measurement.

Measure the metal shaft (spindle) that projects from the back of the handle.

Common lengths: 15mm, 20mm, 30mm, 40mm.

Measure from the base of the handle to the end of the spindle.

2. Spindle Width

Almost all ESPAG handles use a 7mm x 7mm square spindle.

3. Fixing Screw Centres

Measure the distance between the center of the top and bottom screw holes.

Common sizes: 43mm, 68mm, or 93mm.

Handle Handing

Check whether the handle is left-handed or right-handed.

Right-hand handles open clockwise; left-hand handles open counter-clockwise.

For Cockspur Handles:

1. Backset (Stack Height)

This is the distance from the window frame to the underside of the spur.

Common sizes: 9mm, 21mm, 28mm.

2. Fixing Centres

Measure the distance between the screw holes on the backplate.

Step 4: Choose the Replacement Handle

Now that you’ve gathered your measurements, it’s time to find a suitable replacement.

Look for:

Matching handle type

Correct spindle length and fixing centres

Preferred finish (e.g., white, chrome, black, brass)

Optional: Lockable version (for added security or child safety)

Tip: Bring the old handle to a hardware store or use measurements to compare options online. Many suppliers offer universal handles that come with multiple spindle lengths and screw covers.

Step 5: Fit the New Handle

Once you’ve received the replacement, fitting it is a simple reverse of removal.

Installation Steps:

Insert the spindle of the new handle into the window mechanism.

Align the screw holes with the existing ones on the frame.

Screw the handle in place, making sure it’s secure but not overly tight.

Clip on the screw covers to give a neat finish.

Test the operation of the handle to ensure it opens, locks, and closes smoothly.

Common Mistakes to Avoid

Wrong spindle length: Too long, and the mechanism won’t lock. Too short, and the handle won’t engage.

Mixing up left- and right-handed handles

Forgetting to test before full tightening

Forcing the handle if it doesn't turn smoothly (this might indicate a faulty mechanism)

Optional: Lubricate the Mechanism

If your window mechanism feels stiff, consider spraying a light lubricant like WD-40 into the lock mechanism before installing the new handle and upvc door. This can improve operation and extend the life of both the handle and lock.

How Much Do Replacement Handles Cost?

Here’s a general pricing guide:

Handle Type	Price Range (USD)
Basic espag handle	$7 – $15
Lockable espag handle	$10 – $25
Cockspur handle	$10 – $20
Premium finish (chrome, brass)	$20 – $40
Universal kits (with multiple spindles)	$15 – $30

Final Thoughts

Replacing a window handle is one of the easiest and most cost-effective home maintenance tasks. With a few basic tools and accurate measurements, you can restore functionality, improve security, and refresh your window’s appearance in under 30 minutes.

Whether you're updating worn-out hardware or upgrading to a lockable option, following this guide ensures a seamless and stress-free replacement.
